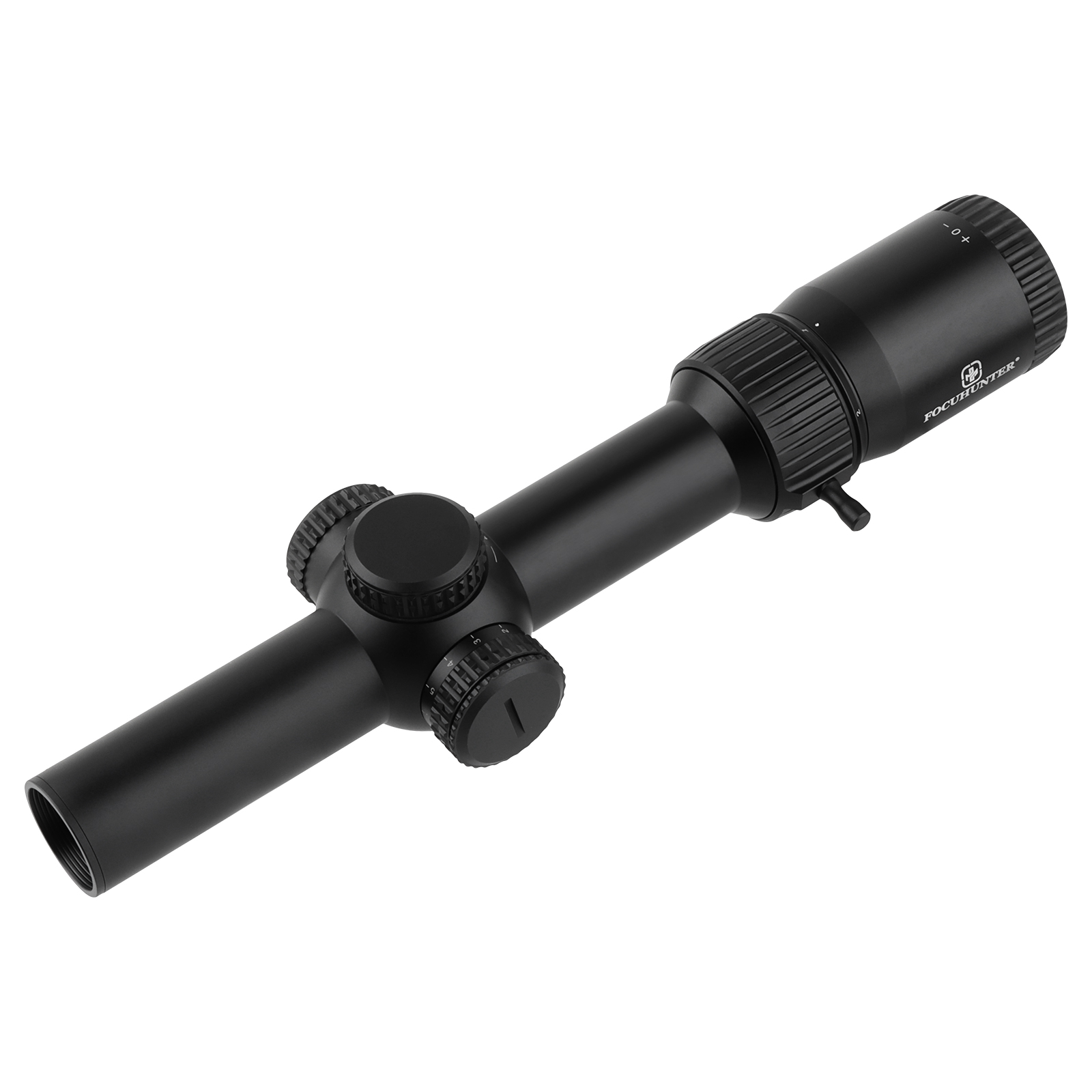

Item No. :MZJ-RSP-103

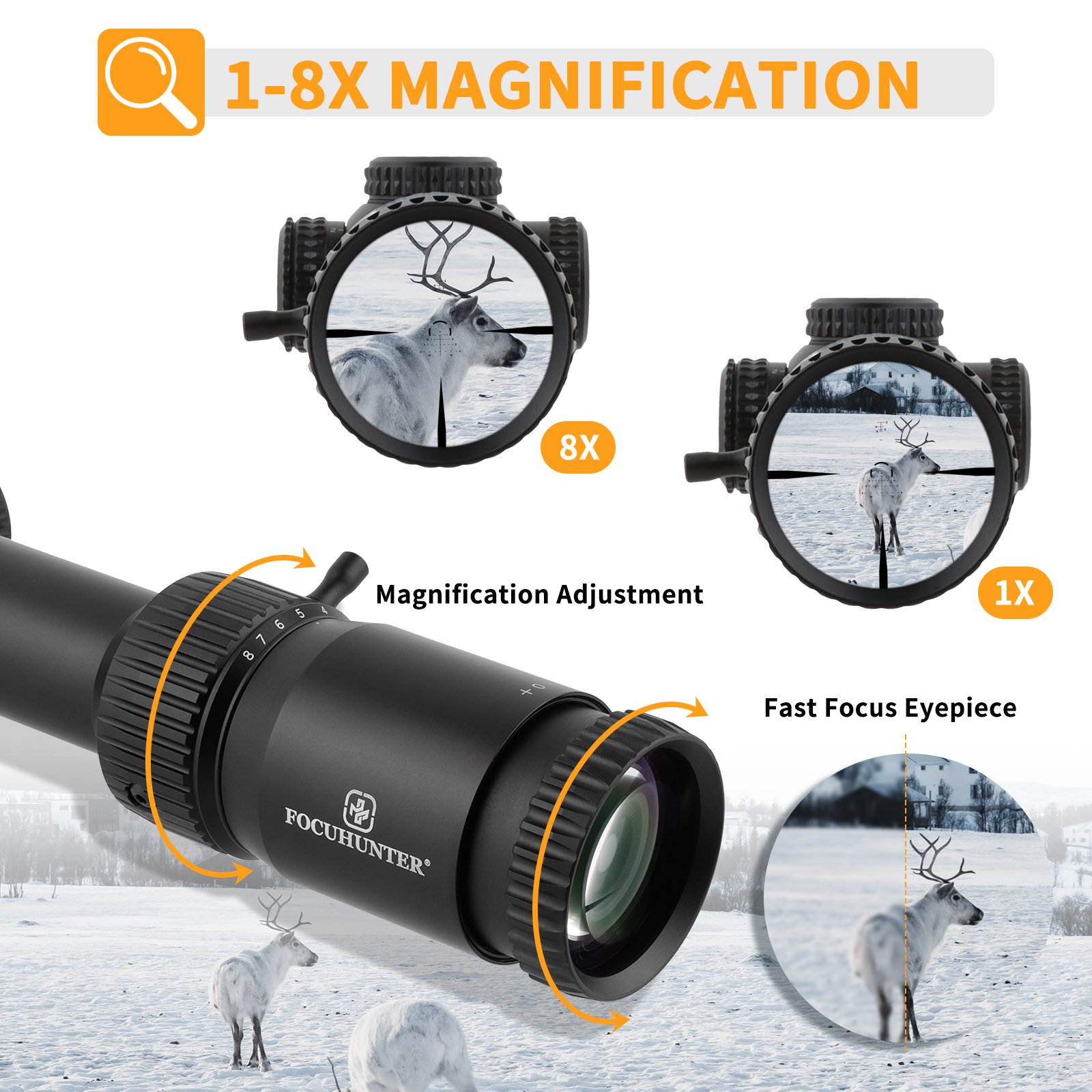

Magnification:1-8X
Objective lens diameter:24mm
Eyepiece diameter:38mm

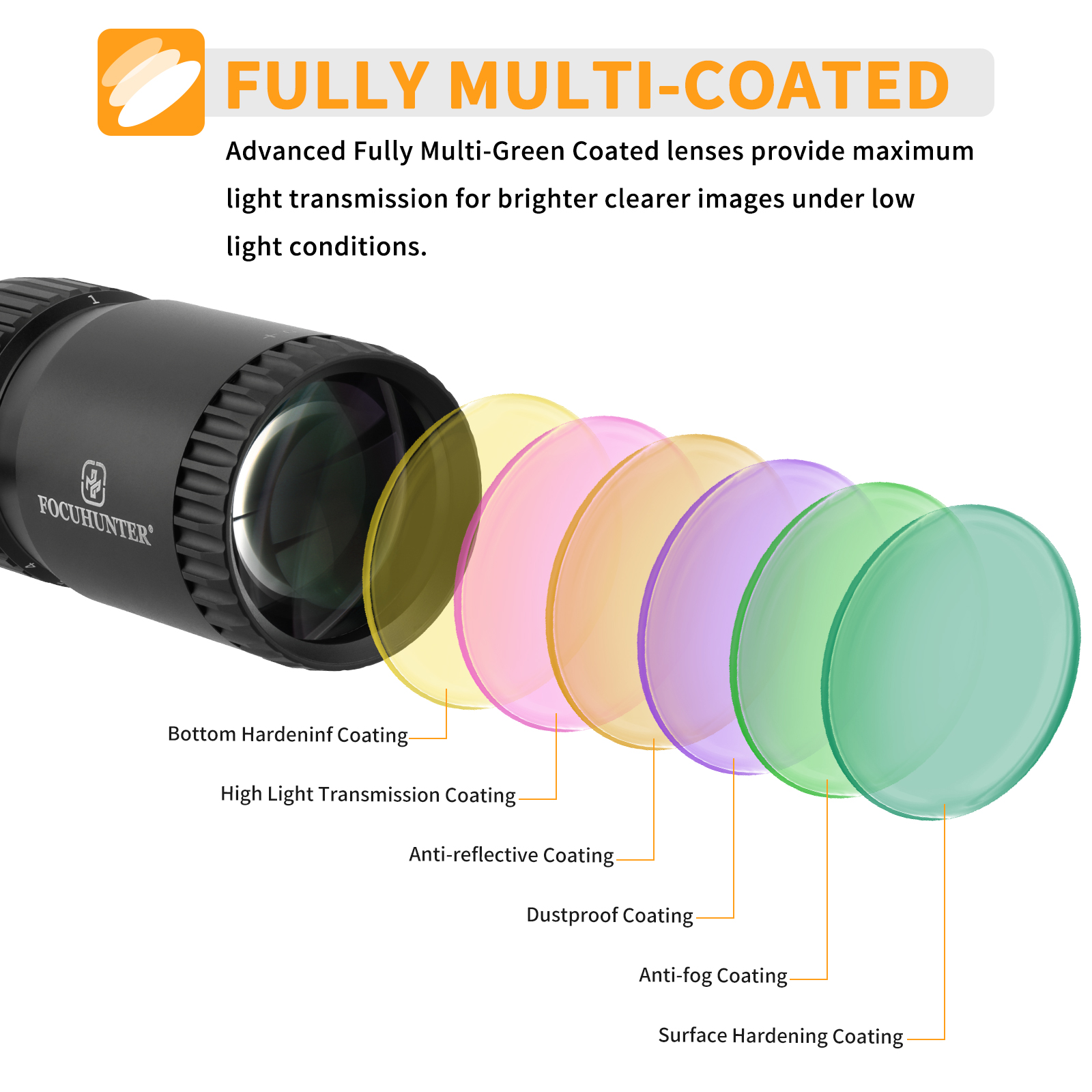

Lens coating:FMC Multi-Layer Coating
Tube Size:30mm
Leaf spring form:spring seat
Material:6061 Aerospace Aluminum
Turret Material:Fancy Brass Screws

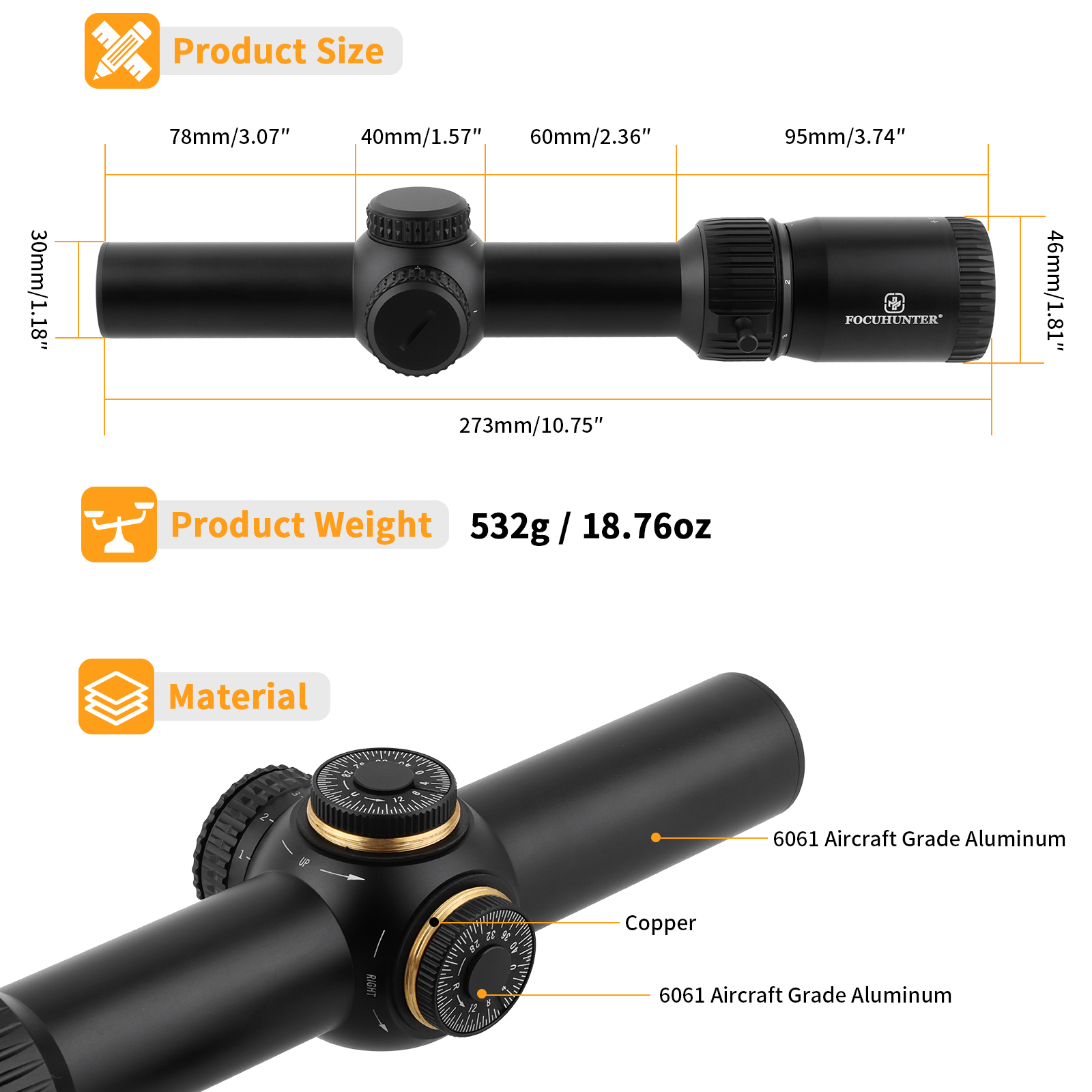

Product length:273mm / 10.75 in
Net product weight:532 g
Whether one-piece tube:Yes
Appearance color:Black Matte
Mounting Length:175mm
Reticle Focal Plane:2nd Focal Plane

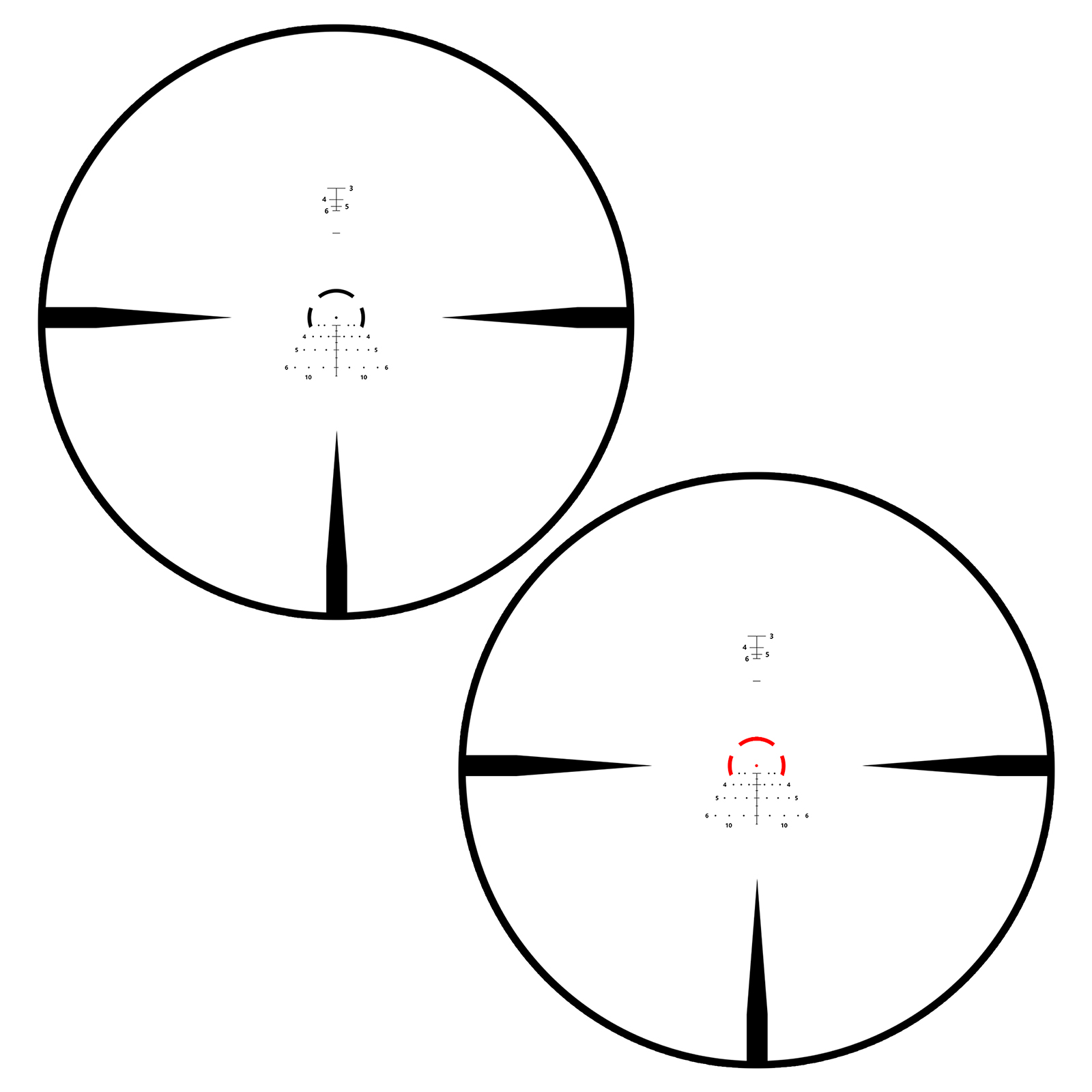

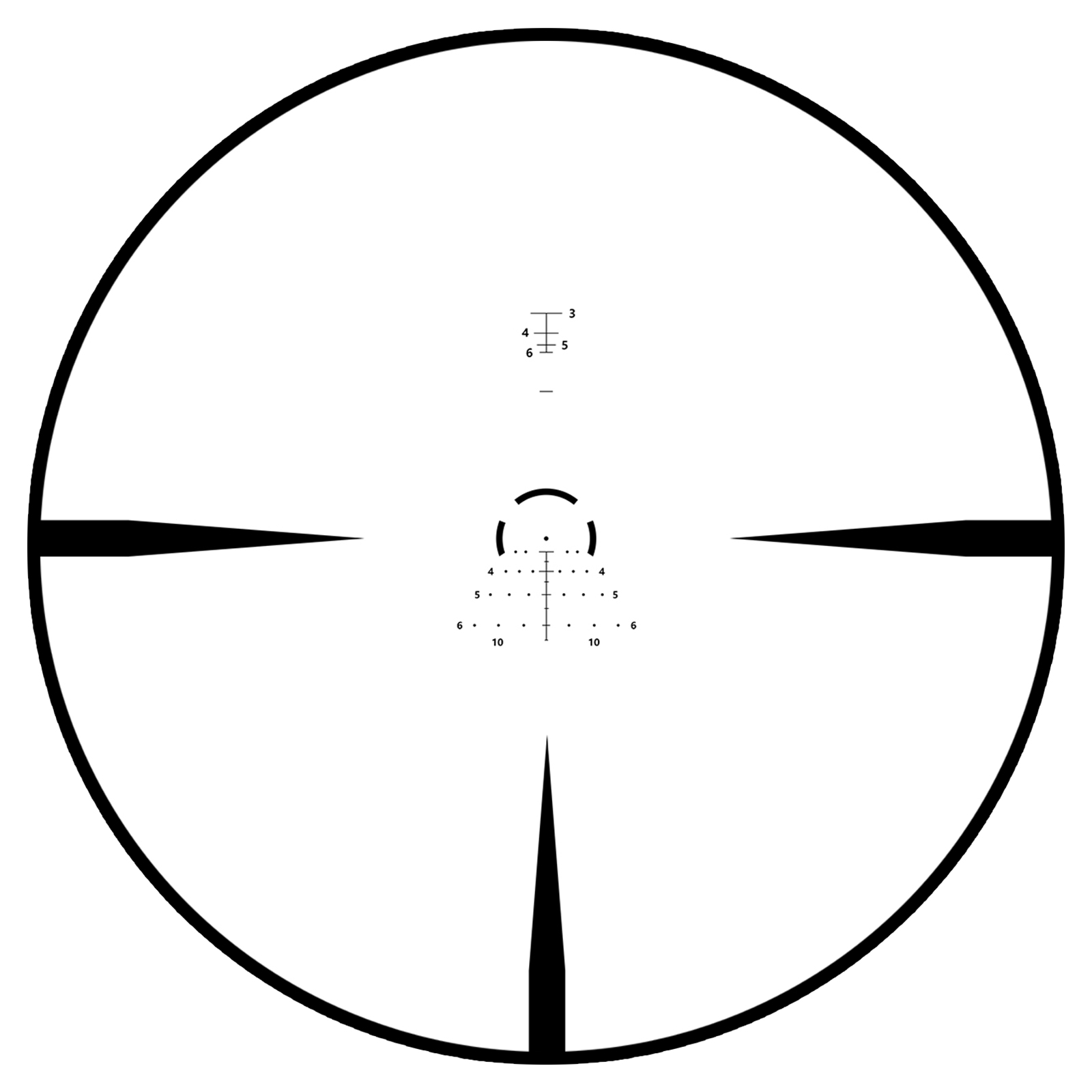

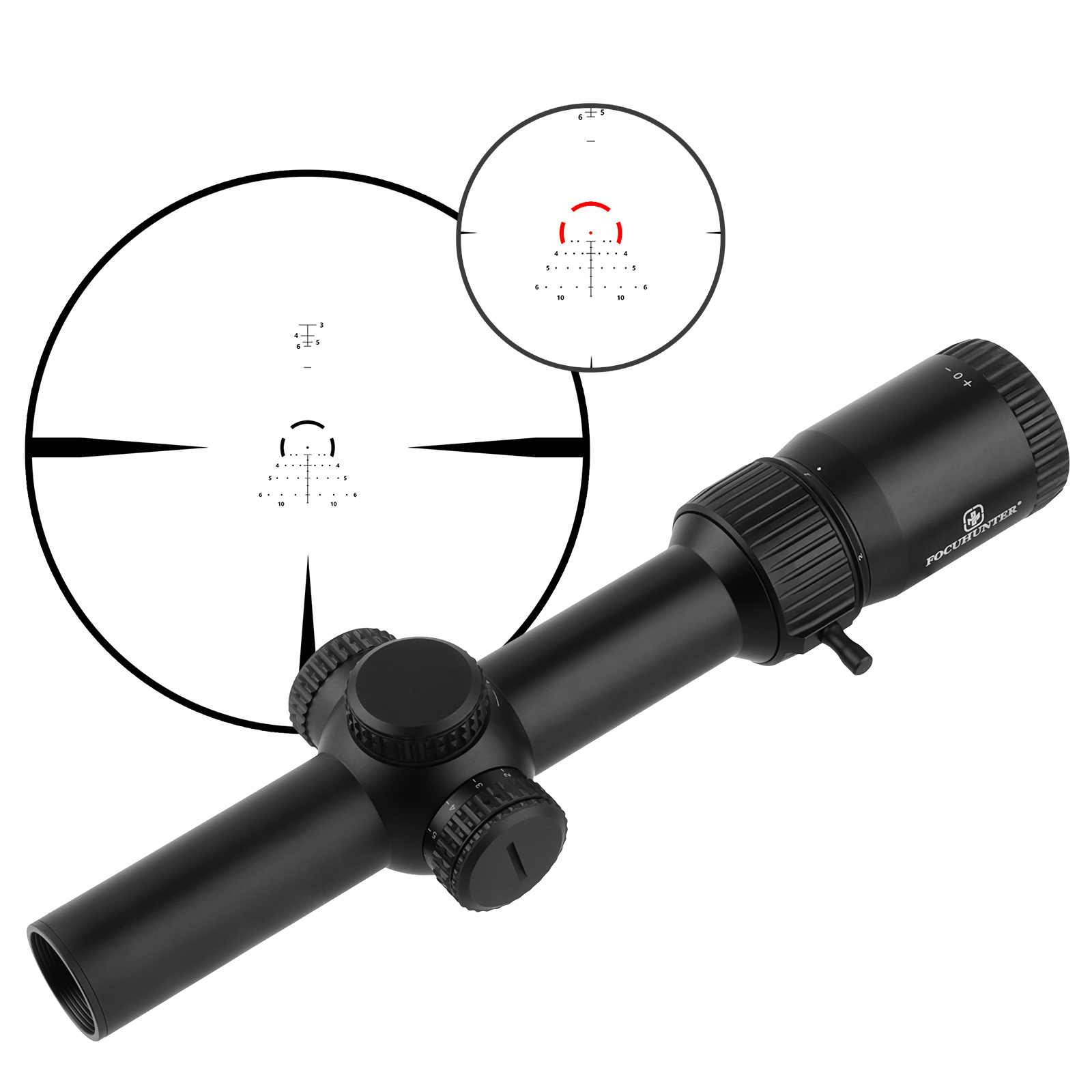

Reticle Type:Glass Etched

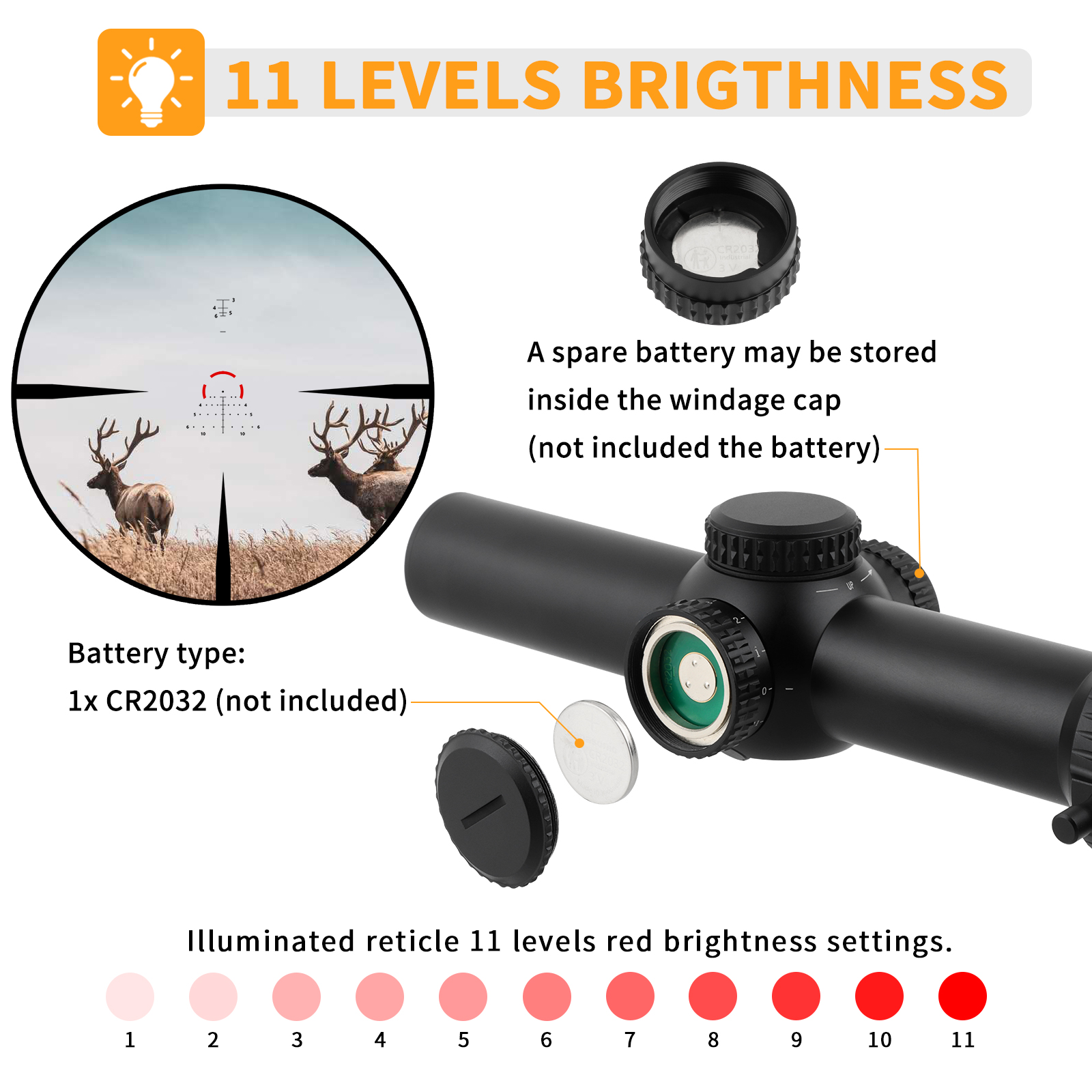

Illumination Color:Red
Brightness Control:11 levels
Waterproof:Ip67
Recoil resistance:1200 G Forces
Whether it is anti-fog:Yes
Whether to fast adjust eyepiece:Yes
Parallax correction code:100 yards

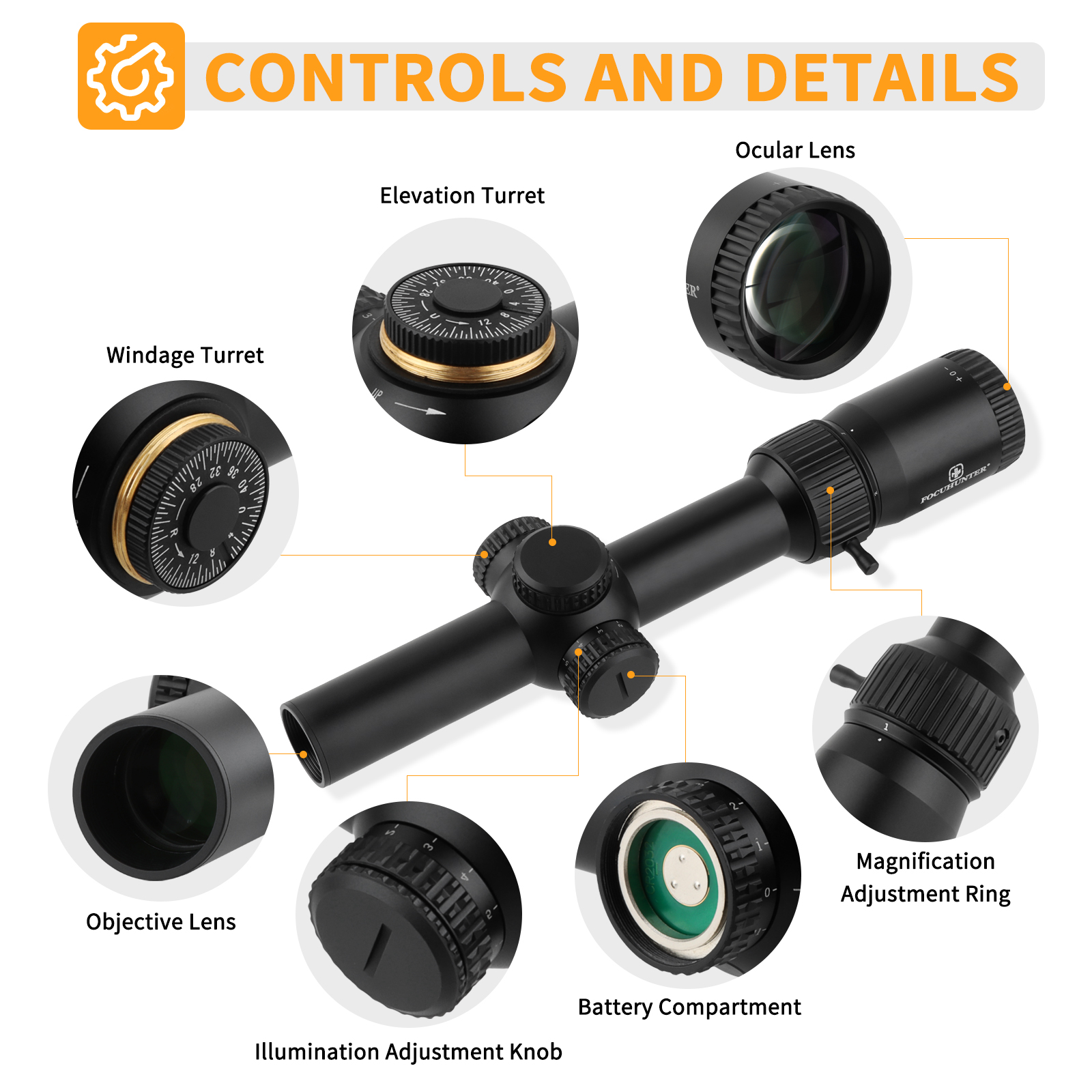

Turret Style:Capped
Click value/adjustment mode:1/2MOA
ELEVATION ADJUSTMENT:140MOA
WINDAGE ADJUSTMENT:140MOA
TRAVEL PER ROTATION:30MOA
Exit pupil distance:91mm-82mm
Exit pupil diameter:Ø2.95-Ø8.5
The field of view Angle is:2° 59′–23° 43′
The eyepiece barrel:45mm in diameter
The viewing range of the fast adjustable eyepiece:-2.3dpr– +3dpr
Operation temperature range:-20℃~+60℃
Storage temperature range:-20℃~+60℃
No Downloadable Files
Item No. : MZJ-RSP-708
Magnification: 3x
Objective Diameter: 30 mm
Materials: 6061 Aircraft Grade Aluminum
Reticle: Circle Dot
Scope Range: Close Range, 100+ Yards
FOV @ 100 Yards: 37.2 ft
Rail Mount Torque: 30 in/lbs
Eye Relief: 3.0 - 3.5 in
Click Value:1/2 MOA
Elevation Range:40MOA
Windage Range:±40 MOA
Finish: Type-III Hard Anodization
Color: Black
Fog & Water Resistance: Yes, Nitrogen sealed
Impact Resistance:1,000 G Forces
illuminated switch: rotary switch
Illumination Setting:5-levels of red and green
Length:4.41in(112mm)
Product weight:12.19oz(345.5g)
