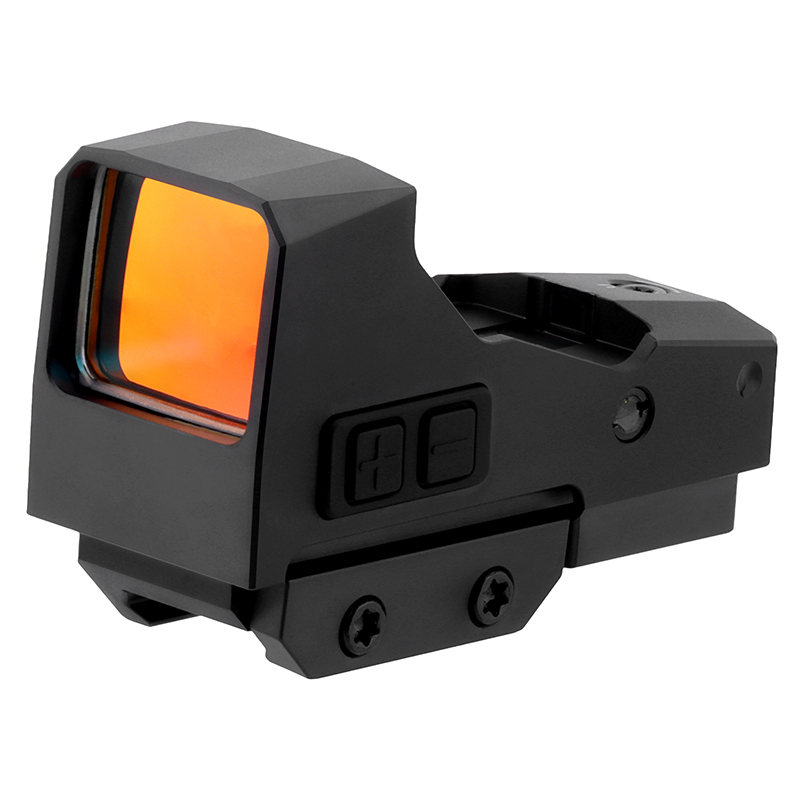

FOCUHUNTER Optics 1X29mm Reflex Multi-Reticle Precision Red Circle Dot Sight
FOCUHUNTER Open-Type Red Dot Sight
A lightweight, reliable open-type red dot sight featuring an all-metal build, generous viewing window, and motion-sensing technology engineered for fast target acquisition in any condition.
Key Features

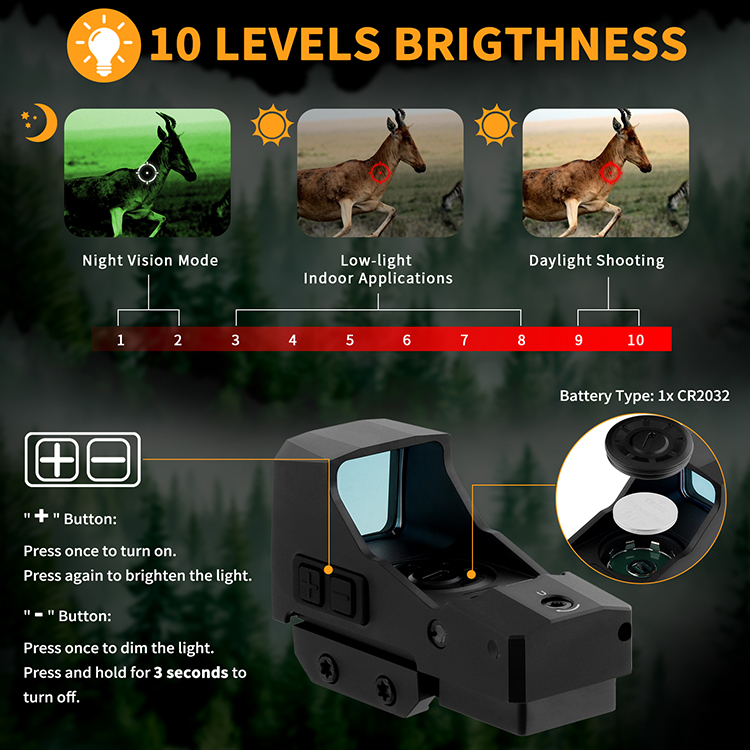

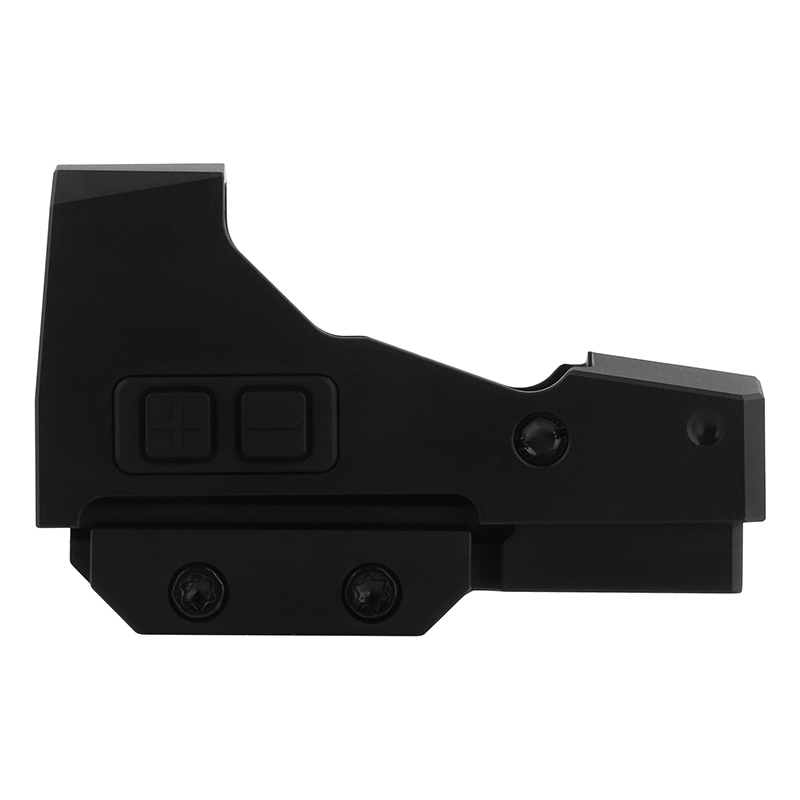

- Advanced Reticle & Illumination: Equipped with a crisp 3 MOA dot + 55 MOA circle reticle (red) and a large window. Features 11 manual brightness settings easily managed via ergonomic top-mounted buttons:
- Levels 1–2: Night vision compatible
- Levels 3–8: Low-light and indoor shooting
- Levels 9–11: Daylight conditions

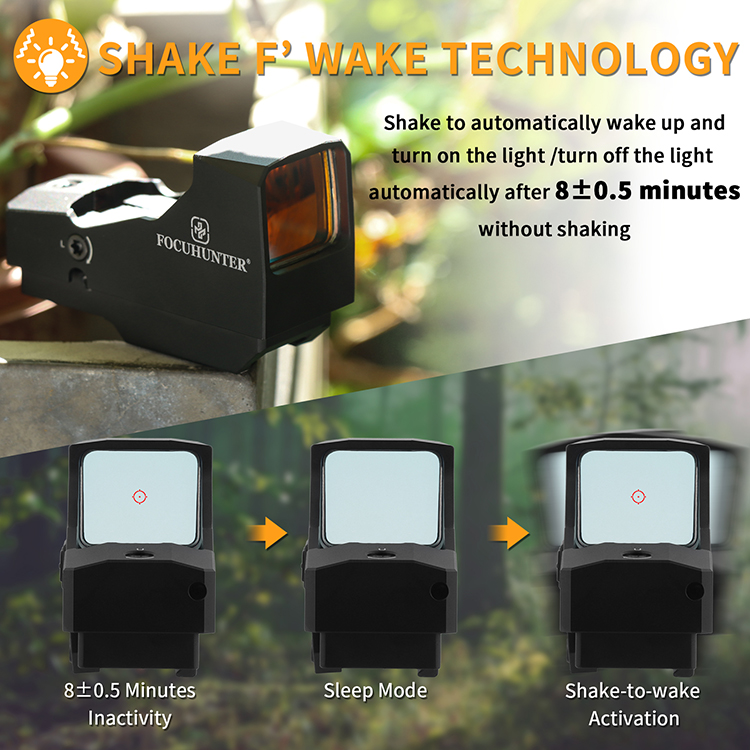

- Shake F’Wake Power Management: Motion-activated sensor provides up to 50,000 hours of battery life powered by a lateral-mounted CR2032 battery. Automatically enters low-power mode after 8 minutes of inactivity and reactivates instantly upon weapon draw.

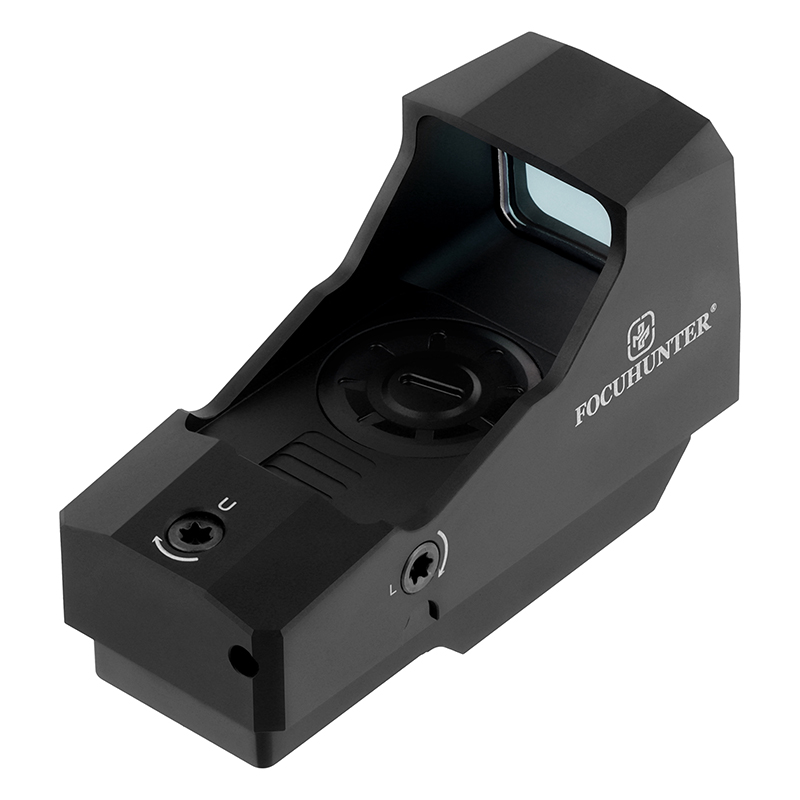

- Precision Adjustments: 1 MOA per click windage and elevation adjustments across a 45 MOA range each, delivering a total adjustment range of 90 MOA. Parallax-free up to 75 yards.

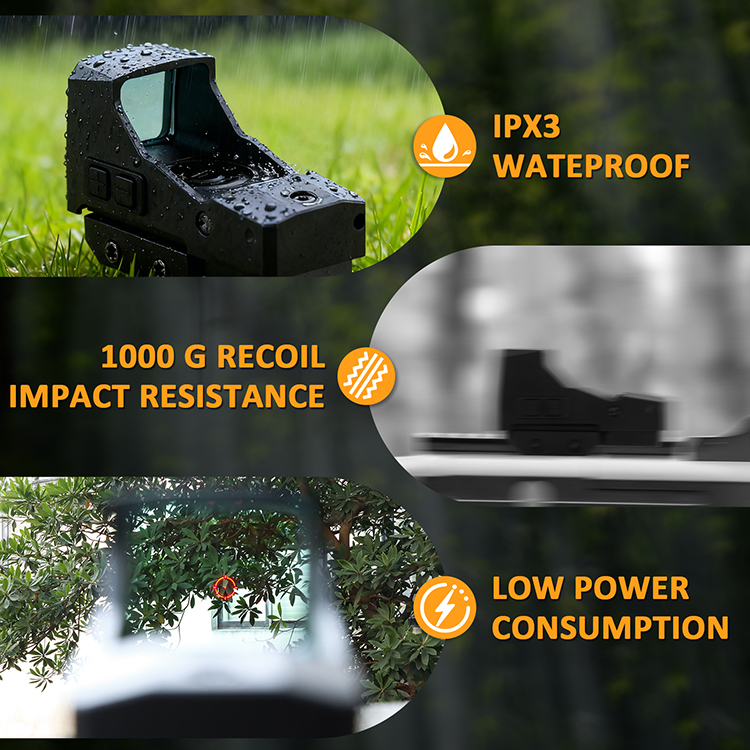

- Rugged Durability: CNC-machined one-piece housing made from 6061-T6 aircraft-grade aluminum with a Type III hard-coat anodized finish. Built shockproof to withstand up to 1000 G’s of recoil and IPX3-rated for wet weather reliability.
Product Specifications
| Specification | Detail |
| Sight Type | Lightweight open-type red dot sight |
| Reticle | 3 MOA Dot + 55 MOA Circle (Red) |
| Brightness Settings | 11 Levels (Levels 1–2: NV; 3–8: Low-light/Indoor; 9–11: Daylight) |
| Adjustment Value | 1 MOA per click |
| Adjustment Range | 45 MOA each (90 MOA total windage/elevation) |
| Parallax | Parallax-free up to 75 yards |

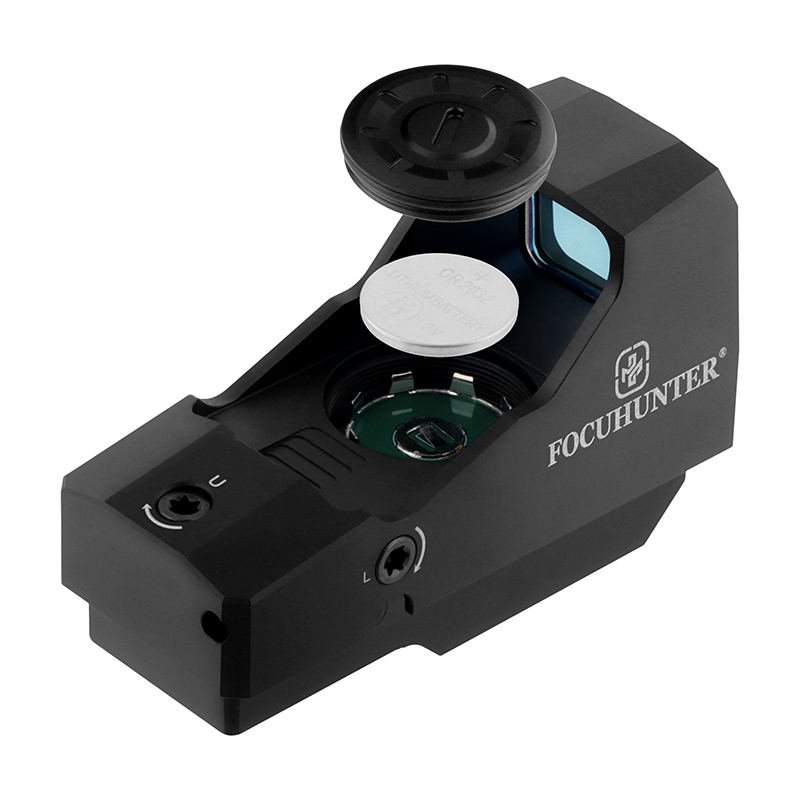

| Battery Type | Lateral-mounted CR2032 |
| Battery Life | Up to 50,000 hours (Shake F’Wake / 8-minute auto shut-off) |
| Recoil Rating | Up to 1000 G’s |
| Waterproof Rating | IPX3 |
| Housing Material | 6061-T6 aircraft-grade aluminum |
| Body Construction | CNC-machined one-piece, Type III hard-coat anodize |
Description
Specification
PDFdownload
Description
Specification
| Item No. | MZJ-RDP-0064 |
| Material | 6061-T6 Aerospace Aluminum |
| Oxidation | Anodized |

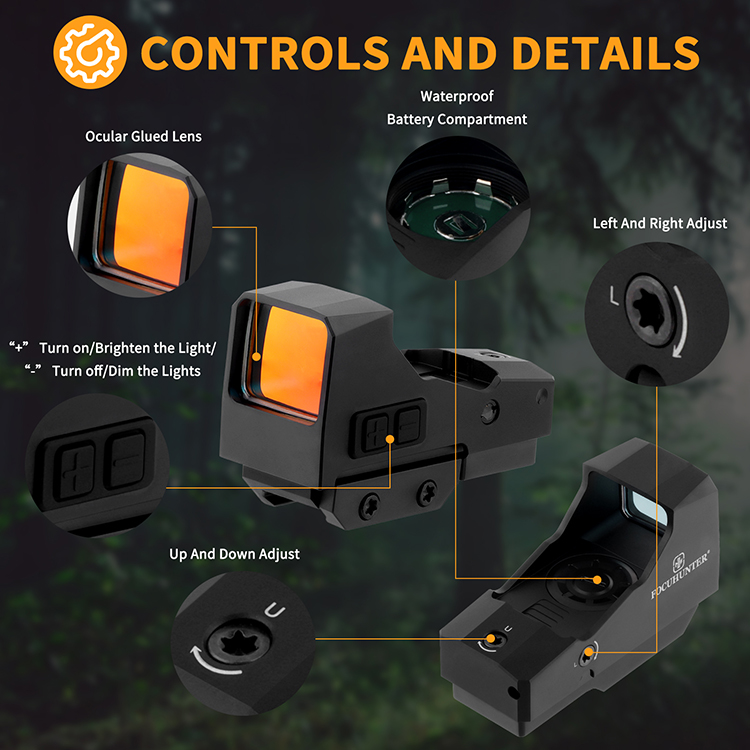

| On/Off | Short-press the “+” or “-” button for less than 0.5 seconds to power on; long-press the “-” button for 2 ± 0.5 seconds to power off. Each manual power-on resets the brightness to level 6, and the pattern remains the same as before powering off.Long-press the “+” button for 2 ± 0.5 seconds to cycle through the patterns |

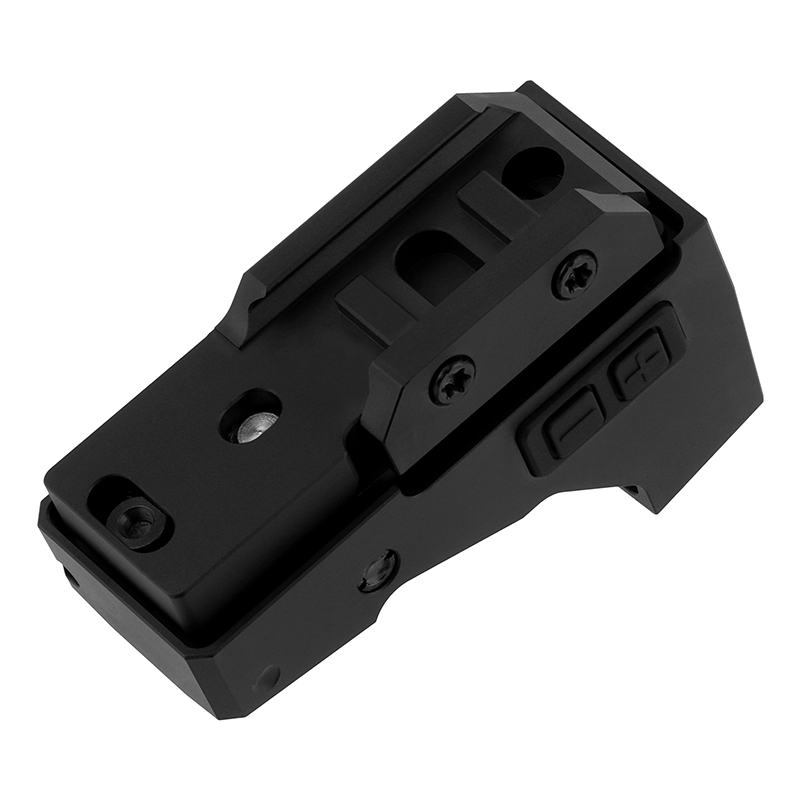

| Adaptable base type | Picatinny |

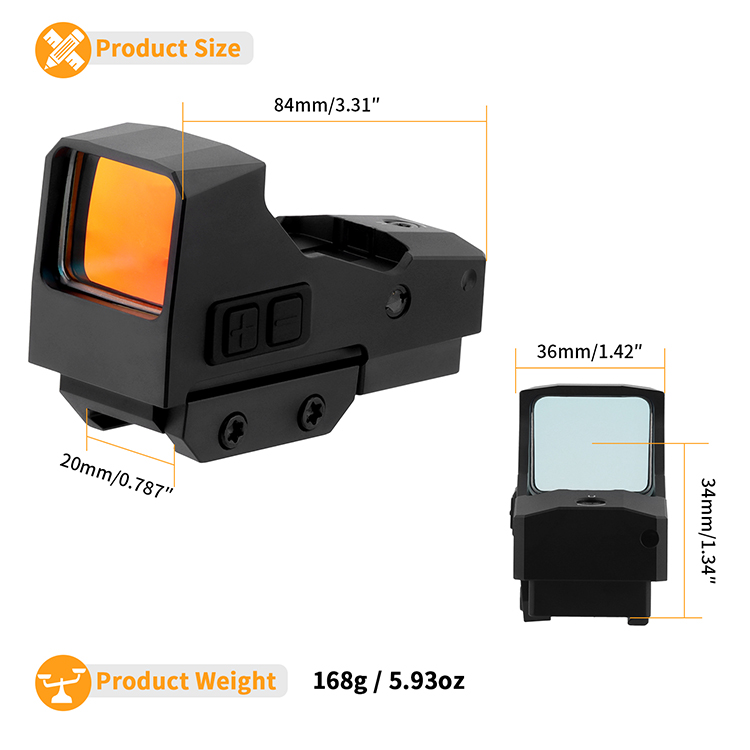

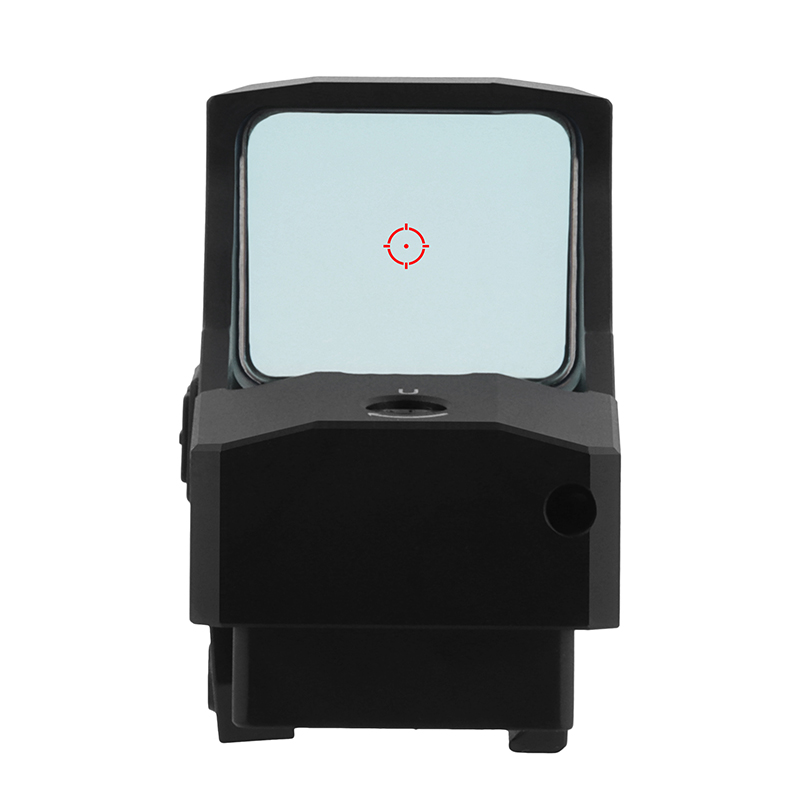

| Lenses size | 29X24mm |

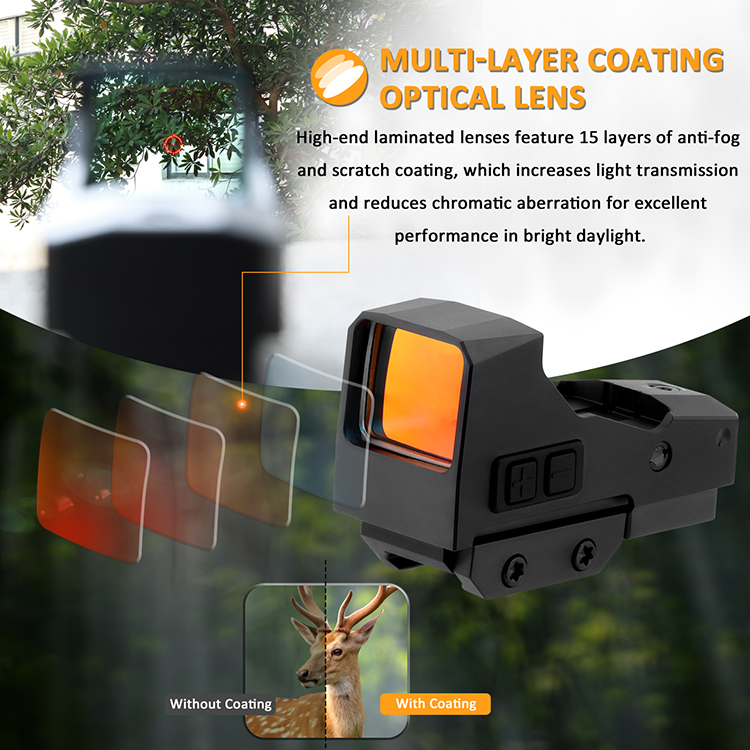

| Lenses | Single optical lens |
| LED color | red |
| light source | High-efficiency and energy-saving OLED |
| Brightness levels | 11 levels (levels 1-2 are compatible with night vision devices) |
| Dot Size | Dot 3 MOA+ circle 55moa |

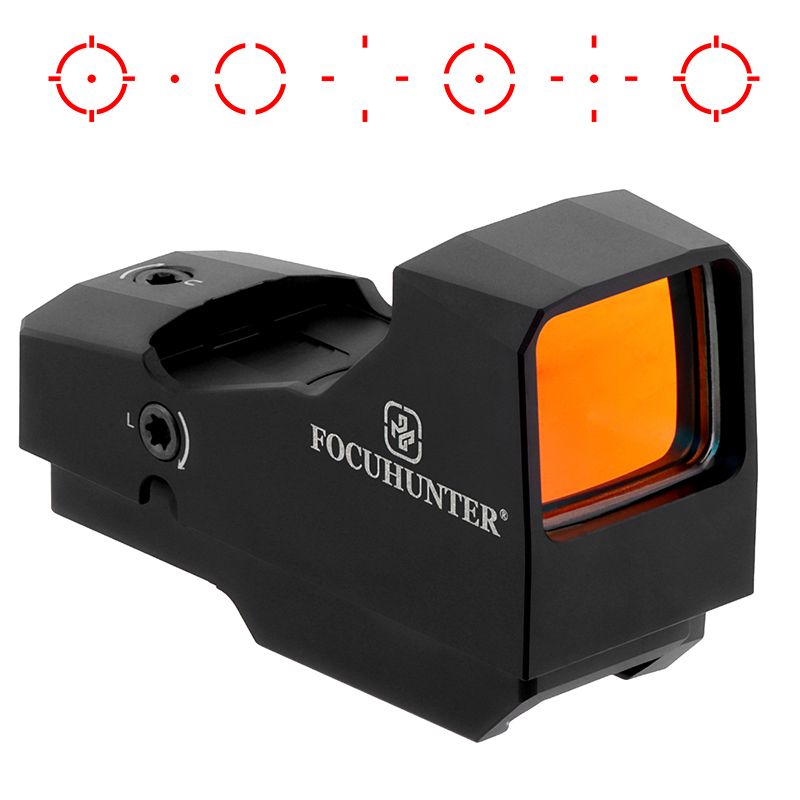

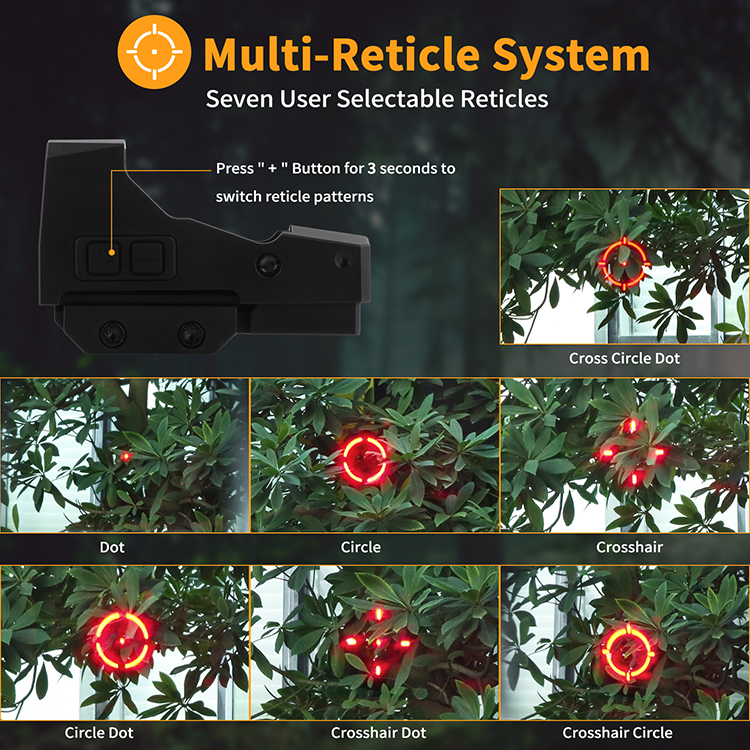

| Red Dot Reticle | 7 reticle patterns available for switching |
| Factory Parallax Setting | 75 yards |
| Parallax | ≤2MOA |
| Click value | 1 click = 1 MOA |
| Elevation adjustment range | ±45MOA |
| Windage adjustment range | ±45MOA |
| shake F’wake | 8 ± 0.5 minutes |
| Automatic shutdown | no |
| Battery model | CR2032 (not included) |
| Battery life | 50000 hours |
| Shockproof G Forces | 1000Gs |
| Waterproof | IPX3 |
| Operation temperature range | -20℃~+50℃ |
| Storage temperature range | -30℃~+60℃ |
| Product weight（Battery not included） | 153.5g |
| Weight with package | 237g |
